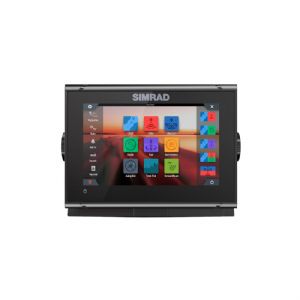

Simrad Go Series GO9 XSR in Chartplotter/Sounder Combo HDI XDCR Transducer

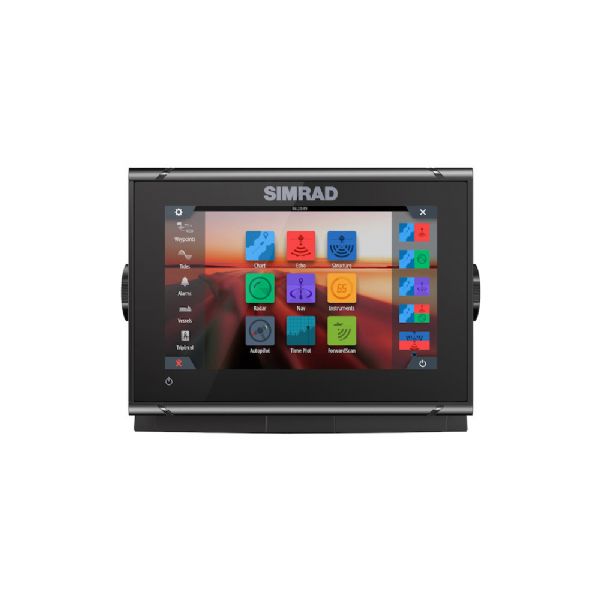

Simrad Go Series  GO9 XSR in Chartplotter/Sounder Combo HDI XDCR Transducer (click for enlarged image)
Part #:
05SN14445-001
Manf. #:
14445-001

Price:
£1,309.99


Description

The GO series 9 offers true ease of use with intuitive touchscreen controls.Customise your home screen with the features you use most, and see everything you need on screen at once with adjustable split-screen views.
Chartplotter Navigation & Waypoint Management
Simrad GO series displays are full-featured chartplotters with support for a wide range of cartography options including C-MAP®, Navionics®, C-MAP Genesis®, and NV Digital® Charts. Mark waypoints with a simple touch, and assign meaningful names.
Find fish with CHIRP & StructureScan® HD sidescan imaging
Add a suitable transducer and your GO series display works as a powerful fishfinder, complete with CHIRP technology for clear detection of fish throughout the water column.  Expand Your View with a Simrad Radar Solution The Simrad GO7 XSR is a full-featured radar display with plug-and-play connectivity to Simrad Broadband 3GTM, Broadband 4GTM, and HaloTM Pulse Compression radar systems. Cruise confidently through crowded harbours, navigate safely in poor visibility, keep an eye on distant weather cells, and find flocks of feeding birds that hint at good fishing spots. Automatic tuning helps to provide a clear radar picture in any conditions, while radar overlay combines radar data with navigational charts for an easy-to-interpret view of your surroundings.

Easier Navigation with Automatic Routing
Automatic routing brings the convenience of in-car navigation to boating, helping you to plot a route and get underway with less delay. Simply select a destination, and your display will suggest the shortest, safest route. This feature is available with Navionics+ or Navionics Platinum charts (Navionics Dock-to-dock Autorouting), and C-MAP MAX-N+ charts (C-MAP Easy Routing).

Navionics® SonarChartTM Live support
Enjoy the most up-to-date charts on the water with Navionics SonarChart Live. Available exclusively with Navionics charts, this feature creates a depth-contour overlay using live sonar data from your display's built-in sounder. The results are shown on your GO series display and updated in real-time as you fish or cruise.

Cruise Charting View
Designed with power boating in mind, the Simrad GO series offers a unique Cruise Charting page that brings together crucial navigation data and charts in one easily readable display.
Simrad SonicHub®2 Compatible
The optional SonicHub®2 module is the perfect companion to your GO series display. Stream music from Bluetooth® connected tablets, smartphones, and other mobile devices with this black-box audio system that eliminates the need for a separate head unit.
Built-in Wireless Connectivity
The Simrad GO series provides access to online services including easy wireless map downloads and software updates via any wireless hotspot. On the water, connect your Simrad GO series display to your mobile devices, mirroring your display's screen on your smartphone or giving you full remote control from your tablet with the free Link app.
* Built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls.

Specifications

Extras/Additional Info:


Approvals
Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Autopilot
Manouevres / Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Connectivity
NMEA 0183 Sentences supported Exports NMEA0183 over WiFi
Bluetooth Internal
Ethernet 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked)
N2K PGNs
NMEA 0183 None
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity None
Video None
WiFi Internal
Display
Backlight Color White
Resolution 800x480
Screen Brightness 1200 nits
Size and Type 7" TFT Optically bonded
Viewing Angles 80° top/bottom, 80° left/right
Electrical
Power Consumption, max. 20 W
Power Consumption, typical 12 W
Recommended Fuse Rating 3A
Supply Voltage 10 - 17 V DC
Environment
Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Shock and Vibration CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1
Storage Temperature Range "-20°C to +60°C (4°F to 140°F)
Waterproof rating IPX 6 and 7
GPS
Correction WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels 32 Channels
Position Accuracy Horizontal Accuracy 3 m (9.8 ft.)
Time to First Fix Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec
Update rate 10 Hz
MFD
AIS Receive AIS data over NMEA 2000 only
Autopilot Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission
Cartography included TBD
Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
Digital Switching BEP C-Zone
External Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS Internal, 10Hz, WASS, MSAS, EGNOS
Internal Storage 90MB
Multimedia via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility) Halo, Broadband, HD Radars
Sonar (inc. compatibility) Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector
Weather SiriusXM via WM-3 (USA only), GRIB
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Physical
Dimensions (W x H x D) 197 mm x 141 mm x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)
Mounting Type Bracket or Panel
Weight 1.320 kg (2.91lb)
Other
Warranty Period 2 Years
Interface Touch screen, OP40 or OP50 controller via NEA 2000
