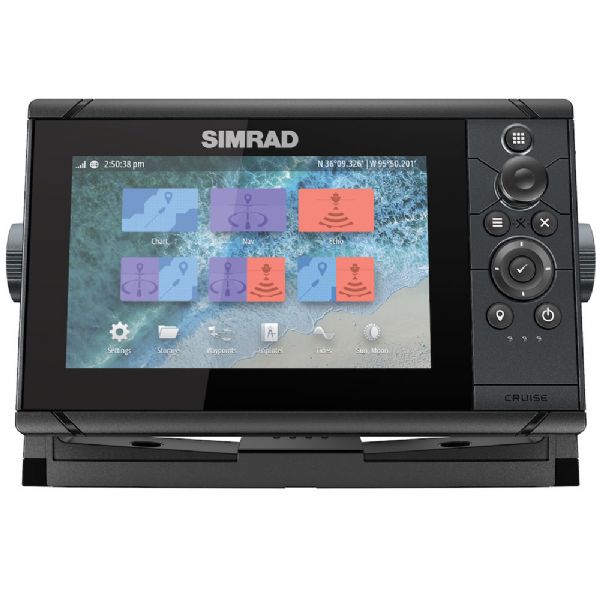

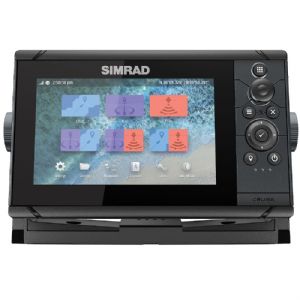

Simrad Cruise 7 with Base Chart and 83/200 Transducer

Simrad Cruise 7 with Base Chart and 83/200 Transducer (click for enlarged image)
Simrad Yachting
Part #:
SN14999-001
Manf. #:
14999-001

Price:
£589.99


Description

The new Simrad Cruise 7in Dsiplay is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second - offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won't need to master complex electronics -- simply turn on your display and go.
Pre-loaded with a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable - eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water - speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.
Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat's helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders

Specifications

Extras/Additional Info:


Connectivity
NMEA 0183 Sentences supported No
Bluetooth None
Ethernet None
N2K PGNs N/A
NMEA 0183 None
NMEA 2000 None
PC Connectivity None
Video None
WiFi None
Display
Backlight Color White
Resolution 800x480
Screen Brightness 1000 nits
Viewing Angles 70° top/bottom, 70° left/right
Electrical
Power Consumption, max. 16.3 W
Recommended Fuse Rating 3A
Supply Voltage 10 - 17 V DC
Environment
Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Waterproof rating IPX 6 and 7
MFD
AIS N/A
Autopilot N/A
Cartography included Worldwide Base Map
Digital Switching N/A
External Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia N/A
Radar (inc. compatibility) N/A
Sonar (inc. compatibility) Integrated CHIRP. 8 Pin push fit connector
Weather N/A
Physical
Dimensions (W x H x D) 263 mm x 145.5 x 100 mm (10.35" x 5.73" x 3.58") (with bracket)
Mounting Type Bracket or Panel
Other
Warranty Period 2 Years
Interface Directional cursor button and rotary dial
