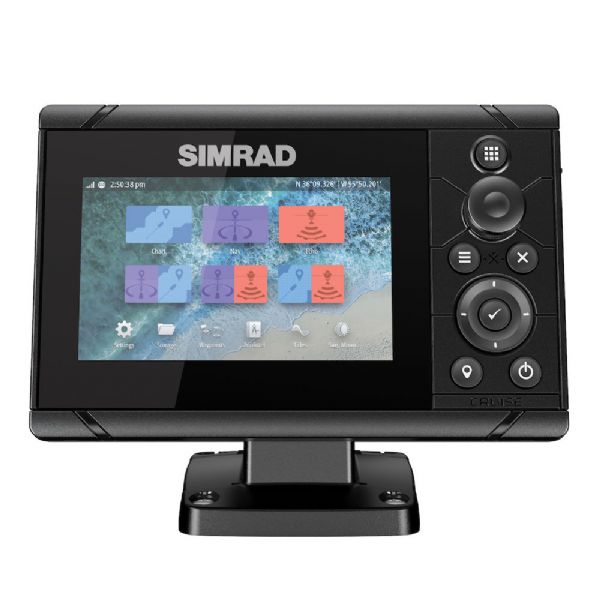

Simrad Cruise 5 with Base Chart and 83/200 Transducer
Description
The new Simrad Cruise 5in Dsiplay is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second - offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won't need to master complex electronics -- simply turn on your display and go.
Pre-loaded with a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable - eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water - speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.
Available in 5- Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat's helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders
Cruise confidently with simple menus plus easy to use rotary dial and keypad controls
Always know where you are and where you are going with pre-loaded worldwide basemap, plus C-MAP® and Navionics® upgrade options
Track the day's boating activity with Simrad® TripIntelTM technology
Keep important data in view with pre-selected split screens
CHIRP sonar with excellent automatic depth tracking
Monitor depth readings, position, battery voltage and other critical boat information
Specifications
Extras/Additional Info:
Connectivity
NMEA 0183 Sentences supported No
Bluetooth None
Ethernet None
N2K PGNs N/A
NMEA 0183 None
NMEA 2000 None
PC Connectivity None
Video None
WiFi None
Display
Backlight Color White
Resolution 800x480
Screen Brightness 800 nits
Viewing Angles 70° top/bottom, 70° left/right
Electrical
Power Consumption, max. 12.2 W
Recommended Fuse Rating 3A
Supply Voltage 10 - 17 V DC
Environment
Operating Temperature Range "-15°C to +55°C (5° F to 131° F)
Waterproof rating IPX 6 and 7
MFD
AIS N/A
Autopilot N/A
Cartography included Worldwide Base Map
Digital Switching N/A
External Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS Internal, 1Hz, WAAS, MSAS, EGNOS
Multimedia N/A
Radar (inc. compatibility) N/A
Sonar (inc. compatibility) Integrated CHIRP. 8 Pin push fit connector
Weather N/A
Physical
Dimensions (W x H x D) 184.5 mm x 142.3 x 117.9 mm (7.26" x 5.6" x 4.64") (with bracket)
Mounting Type Bracket or Panel
Other
Warranty Period 2 Years
Interface Directional cursor button and rotary dialExtras/Additional Info:
Cruise confidently with simple menus plus easy to use rotary dial and keypad controls
Always know where you are and where you are going with pre-loaded worldwide basemap, plus C-MAP® and Navionics® upgrade options
Track the day’s boating activity with Simrad® TripIntel™ technology
Keep important data in view with pre-selected split screens
CHIRP sonar with excellent automatic depth tracking
Monitor depth readings, position, battery voltage and other critical boat information
