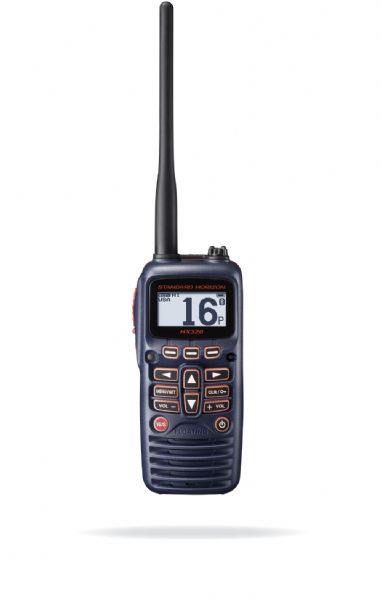

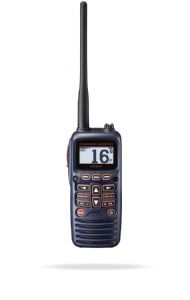

Standard Horizon HX320E Hand held VHF

Standard Horizon HX320E Hand held VHF (click for enlarged image)
Part #:
SHHX320E
Manf. #:
HX320E

Price:
£138.00


Description

HX320E

Floating
Wireless Bluetooth VOX operation
USB Charging capability (USB Type C)
Submersible IPX7 waterproof rating / 3.3ft (1M) for 30 minutes
6W Transmit power (selectable 6W / 2.5W / 1W)
Speaker Microphone Jack
700mW Loud internal speaker audio output
Large high resolution Dot Matrix display
Water activated emergency strobe light
17 hours of operating time with built in 2100mAh Li-Polymer battery
Programmable scan, Priority scan, Dual/Triple watch
Integrated FM Band receiver
All USA, International and Canadian channels
ATIS Mode for European Inland Waterways
3 year waterproof warrantyFloating with a Water Activated Emergency Strobe light

If the radio falls in the water it will float face up and an emergency strobe light is automatically activated, even when the unit is turned off. The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.
USB Charging

Equipped with a USB Type-C charging jack, the HX320 comes supplied with a USB charging cable, USB cradle and USB-AC adapter to quickly and easily charge the radio from virtually anywhere.
Wireless Bluetooth® Operation

With built in VOX Bluetooth technology, the HX320 can now be operated hands free using the optional Bluetooth® headset model SSM-BT10 or a commercially available Bluetooth® headset*.
Large, Clear Full Dot Matrix Display

The large high (dot matrix) resolution display and a bright backlight make the display easy to read in all conditions.
E20 Easy to Operate Menu System

Intuitive menu system allows easy access to all of the setup functions of the radio, making it easy to customize settings based on the preferences of the user.
Built in FM Broadcast band receive

The HX320 has an expanded receiver allowing the user to tune in to their favourite FM radio station. The radio will receive FM broadcast bands between 76 MHz to 108 MHz.
3-year Waterproof Warranty

* Compatibility with commercially available Bluetooth® headsets is not guaranteed.
Package Includes

SRA-19B Antenna
SHB-49 USB Charging Cradle
SAD-27/U/C USB AC Adapter Charger
USB Cable for charging (USB Type-A to USB Type-C)
CLIP-22 Belt Clip
Hand strap
Owner's Manual
Warranty Card





Specifications

Extras/Additional Info:

Technical Specifications
Size: 59 x 128 x 33mm2.3 x 5 x 1.3in
Weight: 240g (8.4oz) with FNB-1221Li
Frequency ranges: TX: 156.025 MHz – 157.425 MHzRX: 156.050 MHz – 163.275 MHz
Emission type: 16KOG3E
Operating voltage: 3.7V DC
Current consumption: 330mA (Receive, typical at AF max).20mA (Standby)2.3A / 0.9A (TX 5W/1W)
Battery: 1560mAh Lithium Ion
Battery life: 10 hours (5 mins RX/5 mins TX/90 mins standby)
RF power output: 5W/1W @ 3.7V
AF output: 600mW@ 8 Ohms for 10% THD
