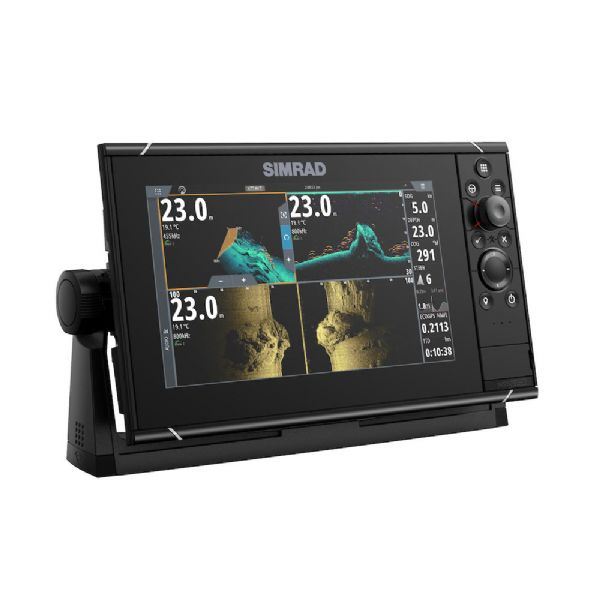

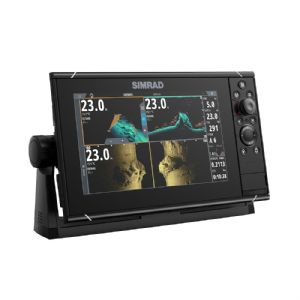

Simrad NSS9 EVO3S Chart Plotter Combo
Description
A high-definition 9-inch display, that's great for centre consoles and other powerboats. Featuring the new iMX 8 high-performance processor, with superfast response times, this compact package delivers extensive functionality. Enjoy stunning clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and keypad for total control in all conditions. Includes world basemap.
- MX 8 Integrated six-core processor for superior performance
- 9-inch SolarMAX TM IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
- Switch seamlessly between touchscreen and keypad control
- Built in high-performance echosounder with 1kW CHIRP
- Built-in GPS receiver and wireless connectivity
- Control Simrad sonar, radar, autopilot, and other accessories
- Industry-standard connectivity to engines, sound system, and more
- TripIntelTM trip planning and support for automatic routing
- Choose low-profile flush mounting or convenient bracket mounting
- Download the Simrad App and connect with smartphones, tablets, and internet hotspots
- Includes world basemap
Specifications
Extras/Additional Info:
Approvals
Compliance CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Autopilot
Manouevres / Turn Patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Connectivity
NMEA 0183 Sentences supported Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Bluetooth Internal
Ethernet 1 x 5 pin yellow connector x 10/100 Mbit
N2K PGNs
NMEA 0183 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity No
Video 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi Internal
Display
Backlight Color White
Resolution 1280 x 720
Screen Brightness 1200 nits
Size and Type High Visibility SolarMax HD® IPS optically bonded TFT
Viewing Angles 80° top/bottom, 80° left/right
Electrical
Power Consumption, max. 21 W
Recommended Fuse Rating 5A
Supply Voltage 10 - 31.2 V DC
Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (48 hr)
Environment
Operating Temperature Range -15°C to +55°C (5° F to 131° F)
Shock and Vibration 100 000 cycles of 20 G
Storage Temperature Range -20°C to +60°C (4°F to 140°F)
Waterproof rating IPX6 and 7
GPS
Correction WASS, MSAS, EGNOS, GLONASS Galileo, Beidou, QZSS.SBAS
GPS Receiver Channels 34 Channels
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
Time to First Fix Cold start 50 sec, Satellite Reacquisition 5 sec
Update rate 10 Hz
MFD
AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
Autopilot Full auto pilot control and commissioning
Cartography included World basemap
Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster US Charts)
Digital Switching C-Zone, Naviop
External Storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
GPS Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Internal Storage 16 GB
Multimedia via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Radar (inc. compatibility) Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
Sonar (inc. compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Weather SiriusXM via WM-3 / WM-4 (USA only), GRIB
Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Compass Safe Distance - Metric, imperial 50 cm (1.7 ft)
Physical
Dimensions (W x H x D) 287 x 166 x 90 mm (11.30 x 6.55 x 3.50")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
Mounting Type Bracket (Supplied) or panel mount
Weight 1.41 kg (3.11 lbs.)
Other
Warranty Period 2 Years
Interface Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers
