Orkney Boats Pilothouse 20 Mk3 Standard PH20

Description

Contact us on 01670512291  about this package

The Pilothouse 20 has a large beam along the waterline which gives it even better stability without sacrificing to perform well with relatively small engines.

  • Big cockpit with underfloor stowage lockers
  • Lockable wheelhouse with excellent visibility through alloy framed windows
  • Self draining cockpit with safe high coamings
  • Wide safe side decks with guardwire option
  • Spacious cabin with galley and toilet option
  • Easy to Tow & Launch
  • Outboard or Diesel Sterndrive Options
  • DOWNLOAD OUR PILOTHOUSE MK3 BROCHURE

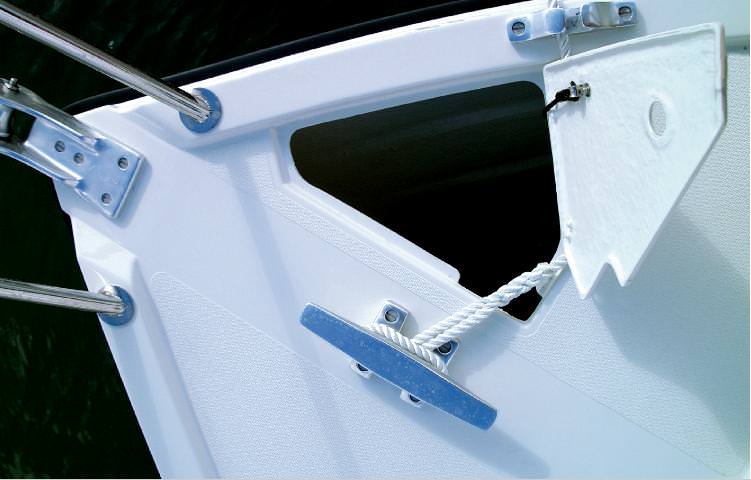

CONSTRUCTION Hull, deck and ancillary mouldings are constructed in hand lay-up GRP. Isophthalic resin is used in the hull which is stiffened below the waterline by bonded-in bulkheads and longitudinal stringers. The cabin and cockpit are formed by GRP modules which are bonded into the hull to increase rigidity. One piece deck moulding utilises complex core stiffening bonded and mechanically fastened to the hull. STD COLOURS Orkney Oxford Blue Hull Orkney Silver Grey topsides & superstructure Boot top stripe in White STD DECK EQUIPMENT Stainless steel bow roller Bow & stern mooring cleats Stainless steel handrails from wheelhouse to cabin top Stainless steel bulkhead grab handles Opening hatch on forward coachroof Heavy duty all round PVC ‘D' section fendering with stainless steel end caps COCKPIT Constructed in GRP with moulded-in non-slip surface to walking areas Full self draining through transom scuppers Inspection hatch giving access to bilge Moulded steps/seats to side decks incorporated lidded lockers Under floor fuel tank locker c/w gas strut assisted lockable lid Stowage lockers with hinged lids Outboard well to suit single outboard ACCOMMODATION  Lockable GRP alloy framed bulkhead cabin door with window Alloy framed toughened glass windows all round Helm station to Starboard Fire extinguisher stowage Co-pilot seat to Port with stowage under Step to cockpit with battery stowage under Helmsman's seat with stowage under ACCOMMODATION Vinyl upholstered base cushions to berth and seating area forward with storage under Area with hinged lid ahead of steering console to take optional toilet OUTBOARD ENGINE VERSION Wheel steering fitted to console with push/pull type cable to suit through pivot tube outboard engines. Maximum engine horsepower 80hp  ENGINEERING Windscreen wiper for helmsman only 4-gang electric switch panel with 12v power socket Fitted manual bilge pump LOOSE EQUIPMENT Manual fire extinguisher.

Standard PH20 to Day Angler option .Please contact us for full details.

Standard PH20 to Valiant option  Please contact us for full details

Specifications

Length:

5.95m

Beam:

2.40m

Weight:

820kg

Engine:


Max Outboard: 80hp
Max Sterndrive: 120hp
Max Speed: 23knots
