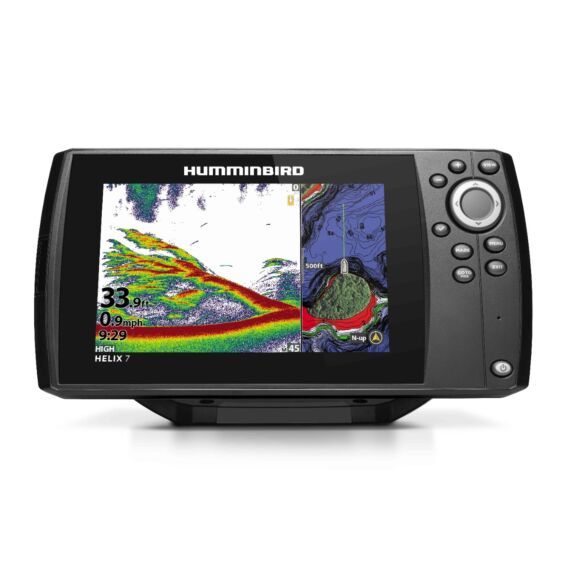

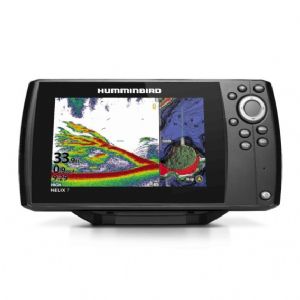

Humminbird HELIX 7 Fish Finder & GPS Chart Plotter CHIRP 2D G4

Description

The HELIX 7 CHIRP GPS G4N fish finder features Dual Spectrum CHIRP Sonar, AutoChart Live, Internal GPS and Humminbird Basemap built-in. An upgraded high-definition 7" display will give you the best view of the many pre-loaded split screen view options so that you'll never miss a fish. All HELIX 7 G4N models support Ethernet networking, Bluetooth(R), NMEA 2000(R), Wi-Fi and are compatible with the One-Boat Network(TM), which means you'll have total control of your fishing machine at your fingertips.

Dual Spectrum CHIRP: Before you cast, know what's down there thanks to long, well-defined fish arches, and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low Q CHIRP transducer, Dual Spectrum offers two ways to search: wide mode for maximum coverage and narrow mode for maximum detail.
SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.
Humminbird Basemap Built-in: Our enhanced standard basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the U.S.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.
LakeMaster Compatible: Upgrade to the unrivalled accuracy and detail of Humminbird LakeMaster maps. From easy-to-read contours to highlighted depth ranges, to scrollable lake lists, you'll have all the tools you need to make every moment count
Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.
Includes transducer and mounting hardware, power cable, gimbal mounting bracket.
1-Year Limited Warranty

Specifications

Extras/Additional Info:

Item Number 411600-1
Series HELIX
Display Size - Diagonal 7"
Display Pixel Matrix 1024x600
Sonar-Standard Dual Spectrum CHIRP
Sonar-Coverage 20°, 42° & 60° @ -10dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/83/200 kHz
Depth-Sonar 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
Interface Keypad Control
Features Built-In GPS, Built-In Mapping, Dual Spectrum CHIRP
Memory Card Slot Single Micro SD
Compatible With AIS, AutoPilot
Power Draw 800 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen SnapShot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 10.54" W x 5.8" H x 3.68" D
Mount-Optional Size 10.54" W x 5.44" H x 1.13" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Trackplotting Included
LakeMaster Compatibility Yes
Coast Master Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Heading Sensor GPS Compatibility No
Upgradable Software Yes
View Preset Keys No
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections Yes
Display Colors Grayscale 16-Bit
Display Size 5" - 7"
Speed Included
Temperature Built-In
Temperature Alarm Yes
Temperature Graph Yes
Transducer Included XNT 9 HW T
HDMI Compatible No
MEGA Live Compatibility No
