Humminbird HELIX 5 Fish Finder & GPS Chart Plotter, CHIRP 2D

Description

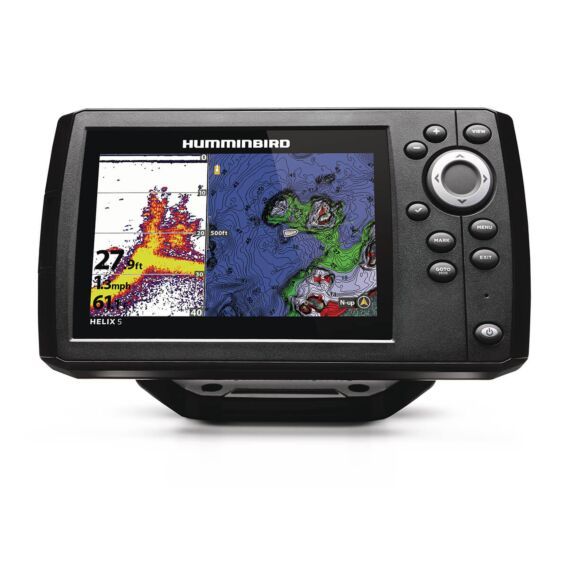

HELIX 5 Fish Finder & GPS Chart Plotter, CHIRP 2D
If fishing is in your DNA, there's no such thing as "too early" or "too far." The HELIXⓇ 5 Series answers the call with an uncompromising 5" widescreen, colour display. This HELIX 5 CHIRP GPS G3 model features Dual Spectrum CHIRP 2D sonar, internal GPS with Humminbird Basemap and AutoChart Live built-in, with additional compatibility for Humminbird and Navionics premium fishing charts.

Keypad control: Master HELIX at the touch of a button. Access the pre-loaded views from the user-friendly menu system, operated by softkey controls that allow you to reliably operate your fish finder in any conditions.
Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum CHIRP 2D sonar offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMasterTM products, as well as your choice of compatible Navionics® charts.
AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
Includes control head, transom-mount transducer, power cable, gimbal mounting bracket and mounting hardware.
1-Year Limited Warranty

Specifications

Extras/Additional Info:

Item Number 411660-1
Series HELIX
Display Size - Diagonal 5"
Display Pixel Matrix 800H x 480V
Sonar-Standard Dual Spectrum CHIRP
Sonar-Coverage 20°, 42° & 60° @ -10dB
Sonar-Optional 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported 50/80/200 kHz
Depth-Sonar 1,200 ft (standard transducer), 3,000 ft (optional 50 kHz)
Interface Keypad Control
Features Built In GPS, Built In Mapping, Dual Spectrum CHIRP
Memory Card Slot Single Micro SD
Compatible With AIS, AutoPilot, Minn Kota US2 Sonar
Power Draw 615 mA
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 4000 Watts
Power Output RMS 500 Watts
Screen Snap Shot Included
Sonar Recording Included
Mount-Standard Gimbal
Mount-Standard Size 7.55" W x 4.64" H x 3.3" D
Mount-Optional Size 7.55" W x 4.28" H x 1.13" D
Transducer Mount Location Transom
GPS Chartplotting Included
GPS Trackplotting Included
LakeMaster Compatibility Yes
Coast Master Compatibility Yes
Navionics Gold/HotMaps Compatibility Yes
Navionics Platinum + Compatibility Yes
Platinum Compatibility Yes
Heading Sensor GPS Compatibility No
Upgradable Software Yes
View Preset Keys No
X-Press Menu System Yes
Custom Digital Readout Yes
Custom View Selections No
Display Colors Grayscale 16-Bit
Display Size 5" - 7"
Speed Included
Temperature Built In
Temperature Alarm Yes
Temperature Graph Yes
Transducer Included XNT 9 HW T
HDMI Compatible No
MEGA Live Compatibility No

HELIX 5 CHIRP GPS G3
