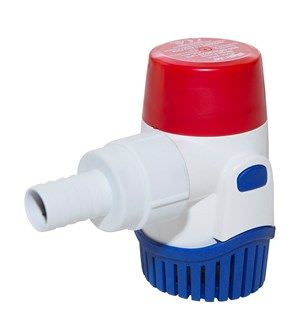

Rule Pumps Rule 800 12v Round pump (20DA)

Description

Rule 800GPH/3028LPH Bilge Pump

Rule brand builds on over 50 years of operational excellence and application expertise with a broad range of solutions for the marine industry.Our bilge pumps provide ultimate pumping performance, which helps keep your bilge clear of nuisance water, building on the genuine Rule design.Rigorous engineering and testing helped generate the new series of bilge pumps. Our pumps are tested to the highest standard, achieving rated performance at 12V vs. 13.6V, resulting in higher flow with better efficiency for the toughest applications.

  • High Flow - optimized impeller to provide greater flow at the same amperage
  • Built-in Thermal Cut-Off (TCO) - provides added protection for pump and vessel
  • Back Flow Prevention - reduces the amount of water left over in the bilge, reducing odor and helping keep your bilge cleaner
  • Hidden Air Vents in the Body - helps prevent air locking in challenging plumbing installations and helps with the check valve
  • Threaded Discharge - easier installation, easier maintenance



Specifications

Dimensions:

20DA Rule 800
Non-Automatic 12v
Flow Rate 800 (gph)
3028 (lph)
Voltage 12 (Vdc)
Fuse Size 7.5 (amp)
Amp Draw 2.8 (amp)
Height 111 (mm)
4-3/8 (inches )
Width 73 (mm)
2-7/8 (Inches )
Port Type 3/4" (19mm) Hose Barb
