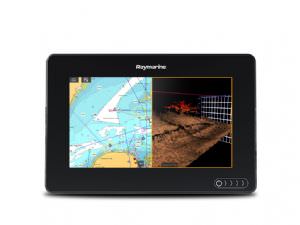

Raymarine Axiom 7 DV Chart plotter with 600W Sonar & Downvision inc CPT-100DVS Transducer + Lighthouse Chart

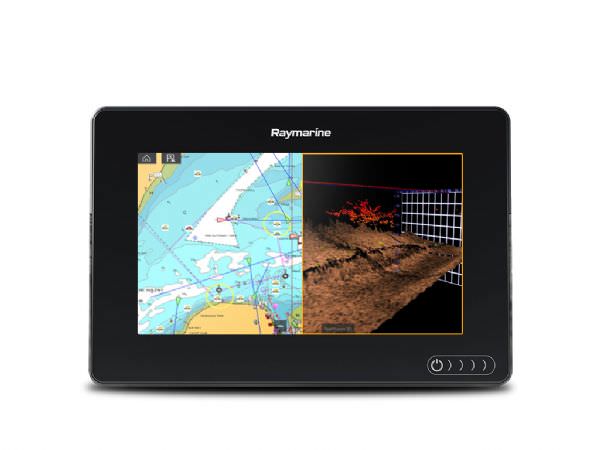

Raymarine Axiom 7 DV Chart plotter with 600W Sonar & Downvision inc CPT-100DVS Transducer + Lighthouse Chart (click for enlarged image)
Raymarine Electronics(By Flir)
Part #:
RAE70364-02-202
Manf. #:
E70364-02-202



Description

Raymarine Axiom DV Chart plotter with 600W Sonar & Downvision inc CPT-100DVS Transducer.Plastic conical  CHIRP Transom Mount Transducer .Temperture + Lighthouse  downloadable  chart

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.



DISPLAY
Display Size 7.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right)
PHYSICAL
Dimensions 210 x 142 x 77mm (7.92" x 5.24" x 3.00")
Weight 1.52kg (3.35lbs)
Mounting Top, Flush, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)
Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F)
POWER
Voltage 12V DC (8 V to 16 VDC)
Power Consumption (Max @ 12V DC) Chartplotter - 7.34 Watts | DV - 10.02 Watts | RV - 9.84 Watts
Note: Power consumption figures for DV variants were taken using a CPT-100DVS transducer and RV variants using an RV-100 transducer.

Download Axiom Brochure
