Barton Marine Single Rope Clutches

Barton Marine Single Rope Clutches  (click for enlarged image)
Barton Marine
Part #:
B80500
Manf. #:
B80500

Price:
£78.02


Description

Rope clutches

Manufactured from high grade plastics and aluminium with 'Spectro' grey annodised finish. Lines can be drawn through the clutch in the locked position as the line moves freely in the direction of pull and is restricted from returning by a spring-loaded cam mechanism. This compact range is suitable for securing halyards and control lines on yachts up to 30ft - or for lighter duties on large craft.
Specifications
Kg SWL Max holding capacity 350Kg Locking levers come in grey, red and white and a set of marking stickers is included.
Kg SWL Max rope capacity 10 mm
Kg SWL Fastenings 6mm
Hole Centres Hole Centres 88mm

Part
No.
Length mm
Width mm
Height mm
Weight (g)


Rope Clutch

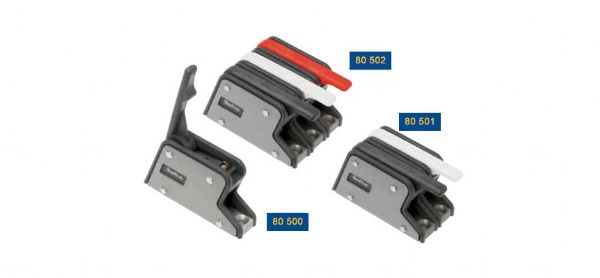

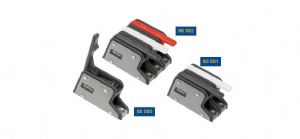

Single Rope Clutch 80 500 107 28 62 250
Double Rope Clutch 80 501 107 54 62 480
Triple Rope Clutch 80 502 107 80 62 710
