Maestrini DZR CR Ball Valve (3/8" BSP Female Ports)

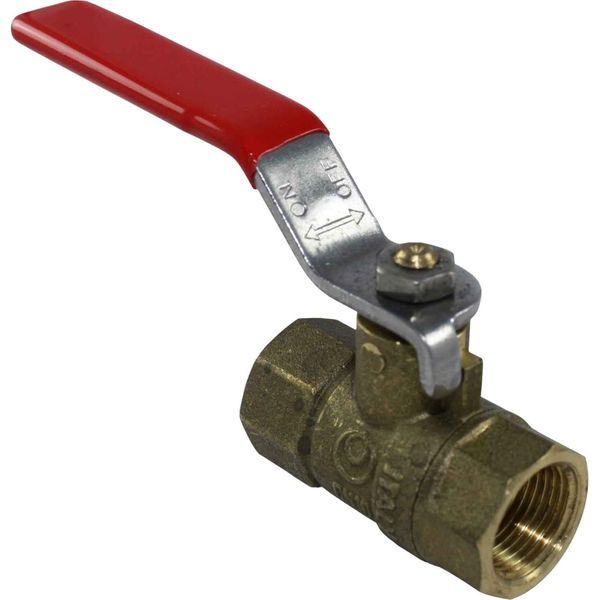

Maestrini DZR CR Ball Valve (3/8" BSP Female Ports) (click for enlarged image)
Part #:
405702
Manf. #:
AF405702

Price:
£13.40


Description

Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 3/8" BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.

This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.

It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent galvanic action. If in doubt, please contact a qualified and competent marine engineer.



Temperature Range -10°C to +100°C
Working Pressure 362.5 PSI (25 bar)
Brand Maestrini
Thread Gender Female
Valve Design Ball Valve
Country of Origin Italy
Construction DZR Brass Body (CW602N UNI EN 12165/98), Chrome Plated DZR Ball (CW602N UNI EN 12165/98), Stainless Steel 430 Handle & Nut, PTFE Ball Seat, NBR Ball Stem O-Ring & HNBR Handle Stem O-Ring
Thread Size 3/8" BSP Female (UNI ISO 228/1)
