OCEAN ELECTRIC STD COMPACT TOILET WOODEN SEAT

OCEAN ELECTRIC STD COMPACT TOILET WOODEN SEAT (click for enlarged image)
Ocean Technologies
Part #:
AF9-53006
Manf. #:
9-53006

Price:
£466.52


Description

OCEAN ELECTRIC STD COMPACT TOILET WOODEN SEAT

  • Bowl made from white vitreous porcelain with corrosion resistant parts throughout
  • Fitted with two part electric seawater inlet and waste macerator pump to rinse and flush in one operation
  • Supplied with single button panel (9-53090)
  • Toilet can be mounted above and below the waterline using appropriate vented loop
  • Self priming water inlet pump operation up to 1.5m vertically
  • Macerator discharge pump operation up to 3.50m vertically
  • Specifications:

    Water consumption: 1.5 - 5 litres

    Voltage: 12/24V

    Amp. Draw: 13A - 7A

    Outlet connection: 25 mm (1'')

    Inlet connection: 19 mm (3⁄4'')

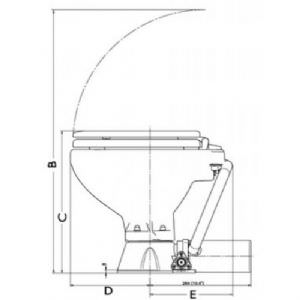

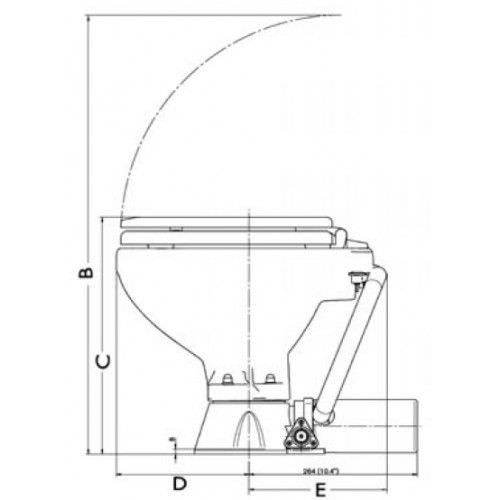

    Part No Weight A (mm) B (mm) C (mm) D (mm) E (mm)
    9-53006 10kg 345 692 373 209 216
    9-53007 10kg 345 692 373 209 216



    Downkload technical spec sheet
