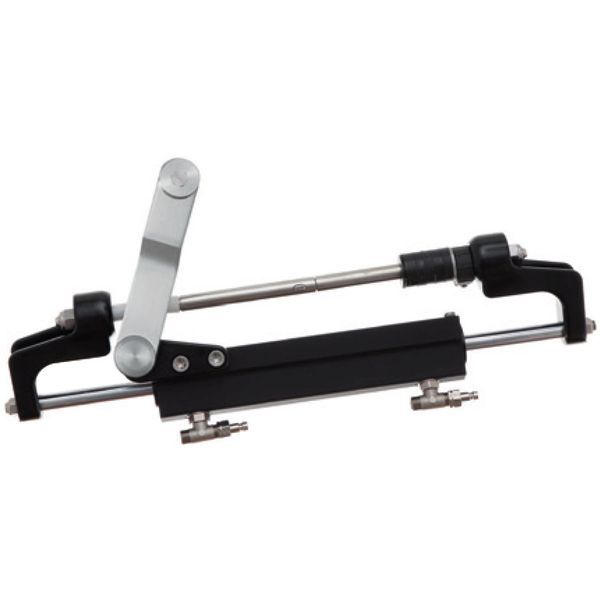

Ultraflex UC95-OBF Front Mounted Cylinder UC95-OBF/2
Description
The UC95-OBF front mount cylinder is recommended for use with outboard engines 175 hp total and less, and where the boat speed does not exceed 55mph (48 knots). It features adjustable boss style fittings for easy installation, a high resistance stainless steel connection bolt (ULTRABOLT) and replaceable cylinder heads. The number of turns lock-to-lock is equal port to starboard or vice-versa. Ultraflex UC95-OBF/2 Outboard Front Mount Hydraulic Cylinder is suitable for the following engine applications (and will allow for a wider tilting angle than UC95-OBF/1):
NOTE Min 8 week lead time
Evinrude:
- E40, E50, E55 & E60 2S (2004 - to date)
- E75 & E90 2-stroke (2004 - to date)
- E115, E130 & E135 2-stroke V4 (1995 - to date)
- E150 & E175 2-stroke V6 (1995 - to date)
Johnson:
- BJ70 4-stroke (2001-2007)
- J90 - J115 V4 2-stroke (1995-2007)
- J150 - J175 V6 2-stroke (1995-2007)
Selva:
- 150 White Shark 2S (2001 - 2007)
Suzuki:
- DF70, DF80 & DF90 4-stroke (1998 - to date)
Tohatsu (Nissan):
- 115, 120 & 140 2-stroke (2004 - to date)
Yamaha:
- 75C & 90 2-stroke (1998 - 2008)
- 115C, 130B & 150F 2-stroke (1990 - 2008)
- 150 & 175 HPDI VMAX 2-stroke (2000 - 2008)
Capacity Description 94cc
Material Stainless steel connection bolt
Output 278kg - 613lbs
Fitting Hose Connector
Connections Description 3/8" OD Pipe
Displacement 94cc - 5.5 cu.in
Steering Wheel Turns Equal port to starboard or vice-versa
Stroke 186mm (7.3")
Brand Ultraflex
Model UC95-OBF/1
Approvals CE
Height Description 100mm
Width 160mm
Length 551mm (21.7")
Weight 4.3kg
Diameter Description 30mm - 1.18" ID
Mounting Description Front
