Ultraflex UP28T TILT MOUNT HYDRAULIC HELM

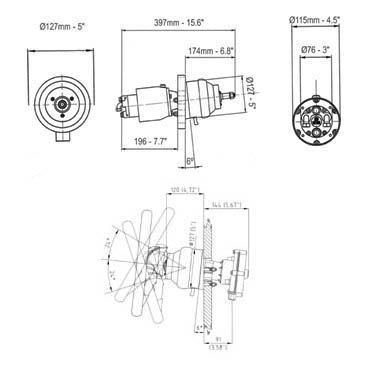

Ultraflex UP28T TILT MOUNT HYDRAULIC HELM  (click for enlarged image)
Utraflex Group
Part #:
AF4-48007
Manf. #:
4-48007

Price:
£801.36


Description

Compact design
Ball bearing piston race
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
Stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Cast iron rotor for greater durability and longer life
1/4" NPT fitting for 3/8" tube
Complete with elbow fittings
UP45 F pumps are ideal for double cylinder applications
Tilt mechanism:
X52 - 39250 U
Tilt range of 48º and five locking positions
NOTE:requies X52 tilt mechanism fits all Ultraflex tilt mount rotary and rack and pinion steering helms as well as all Ultraflex tilt mount hydraulic pumps. KIT F (optional) - 39664 Y Remote fill adapter
Steering wheel sold seperately

Specifications

Extras/Additional Info:

Mounting Requires X52 Tilt
Model UP28T
Displacement 28cc - 1.7cu.in
No of Pistons 5
Relief Valve Settings 70 Bar - 1000 PSI
Max Wheel Dia 406mm - 16"
Weight kg - lbs 5kg - 11lbs
