Ultraflex UP45FFront MOUNT HYDRAULIC HELM 45cc

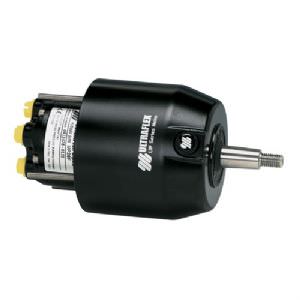

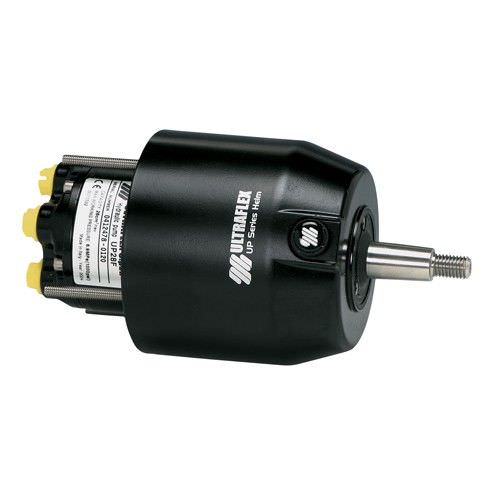

Ultraflex UP45FFront MOUNT HYDRAULIC HELM 45cc (click for enlarged image)
Utraflex Group
Part #:
AF4-48019
Manf. #:
4-48019

Price:
£1,075.80


Description

 UP45 F -  FRONT MOUNT HELM PUMPS
FEATURES

Available in five different displacement sizes
Compact design
Ball bearing piston race
Built-in lock valve for positive rudder lock (except UP25 NV F and UP33NV F)
Integral relief valve for over-pressure protection
3/4" tapered stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Cast iron rotor for greater durability and longer life
1/4" NPT fitting for 3/8" tube
Complete with elbow fittings
UP45 F pumps are ideal for double cylinder
applications
X64 - 40198 C square flange or X57 - 39464 P round flange permit to install the pumps in an intermediate dashboard position

Specifications

Extras/Additional Info:

Mounting Front Mount
Model UP39F
Displacement 39cc - 2.4cn.in
No of Pistons 7
Relief Valve Setting 70 bar - 1000 PSI
Max Wheel Dia 710mm - 28"
Weight kg - lbs 5kg - 11lbs
