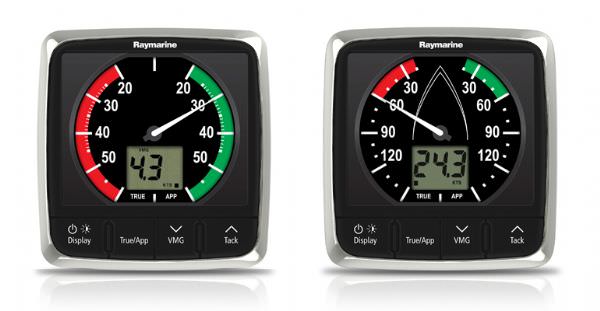

Raymarine i60 Analogue Close Hauled Wind Display

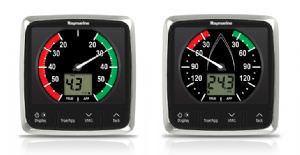

Raymarine i60 Analogue Close Hauled Wind Display (click for enlarged image)
Raymarine Electronics(By Flir)
Part #:
RAE70062
Manf. #:
E70062

Price:
£486.00


Description

The new i60 instruments are designed to complement the all new Raymarine multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.

Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.



Features

  • Large analogue dials
  • Red backlighting for improved visibility
  • SeaTalk and SeaTalkng interfaces
  • NMEA2000 (compatible) interface
  • Built-in transducer interface
  • 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
  • Large controls for ease of use at sea
  • Low power consumption
  • Multiple data source support eliminates potential data conflicts
  • Front mounted design for simple installation

iView Dimension diagram

Specifications

Extras/Additional Info:

Dimensions View dimensions diagram
Nominal Voltage 12V DC
Operating Voltage

Range
10 - 16V DC
Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature Range -20ºC to +55ºC
Storage Temperature
-30ºC to +70ºC
Relative Humidity up to 93%
Waterproofing Standard
IPX6
Connections 2 x SeaTalkng and transducers

Conformance
Europe 2004/108/EC
