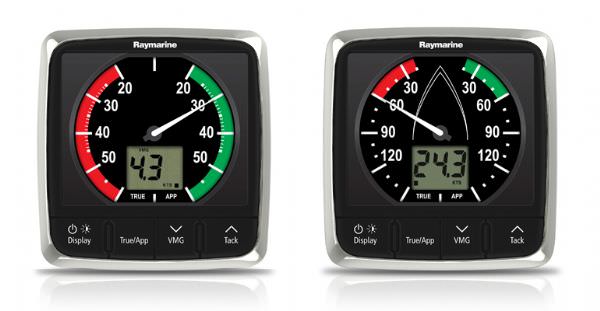

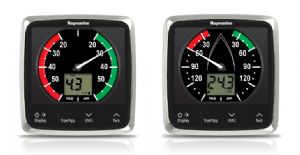

Raymarine i60 Analogue Wind Display
Description
The new i60 instruments are designed to complement the all new Raymarine multifunctional displays. Designed specifically for sailboaters, these stylish, dedicated-function instruments cover wind and close-hauled wind options in analogue and digital formats.
Excellent viewing angles for both day and night conditions and simple, push-button controls make i60 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.
|
Features
|
Specifications
Extras/Additional Info:
Dimensions View dimensions diagram
Nominal Voltage 12V DC
Operating Voltage
Range
10 - 16V DC
Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature Range -20ºC to +55ºC
Storage Temperature
-30ºC to +70ºC
Relative Humidity up to 93%
Waterproofing Standard
IPX6
Connections 2 x SeaTalkng and transducers
Conformance
Europe 2004/108/EC
