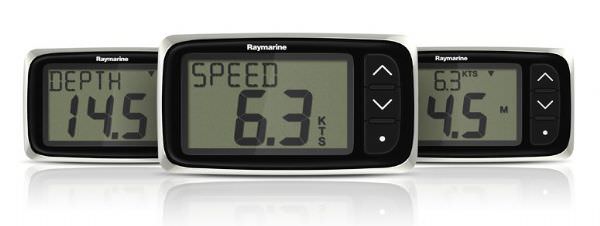

Raymarine i40 Speed Display

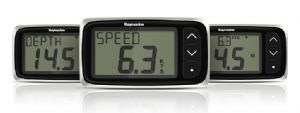

Raymarine i40 Speed Display  (click for enlarged image)
Raymarine Electronics(By Flir)
Part #:
RAE70063
Manf. #:
E70063

Price:
£213.00


Description

Compact Digital Displays

Big displays for smaller powerboats, yachts and RIBs, these compact yet powerful SeaTalk instrument displays offer full integration with Raymarine autopilots and navigation equipment and can be surface or trunnion mounted.

Extra large (28mm max) digits and razor sharp LCDs - easy to use Raymarine i40 instrument displays have outstanding visibility in all lighting conditions.

Key features:

  • Red backlighting for improved visibility
  • Large controls for ease of use at sea
  • Low power consumption for increased battery life.
  • SeaTalk interface (SeaTalkng when used with SeaTalk converter)
  • Built-in transducer interface
  • Same footprint as the older Raymarine ST40 instrumentation
  • Dimensions

Specifications

Extras/Additional Info:

Dimensions View dimensions diagram

Nominal voltage 12V DC
Operating voltage range 10 - 16V DC
Current consumptions (12V supply) typical Speed and Wind: 25mA
Depth: 30mA
Bidata: 35mA
Current consumptions (12V supply) maximum 100 mA
Operating temperature 0ºC to +55ºC
Storage temperature
-30ºC to +70ºC
Relative humidity up to 93%
Water proofing IPX6
Connections SeaTalk, Transducer connections

Conformance Europe 2004/108/EC
