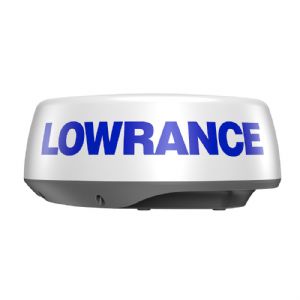

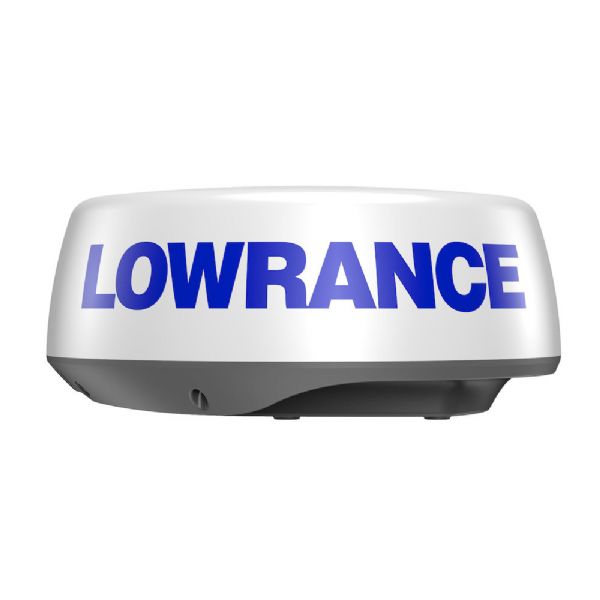

Lowrance Halo 20 Radar
Description
Unrivalled Short-to-Mid-Range Performance
Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.
Better Situational Awareness, Collision Avoidance
HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you're navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.
Ready When You Are
HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you need it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.
Easy to Use
Harbour, Offshore, Weather and custom modes tune HALO20 Radar's advanced signal processing to help ensure that targets can be seen vividly - even in the toughest environmental conditions.
Specifications
Extras/Additional Info:
Approvals
Compliance FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
Electrical
Power Consumption, max. 20W
Power Consumption, typical 18W
Recommended Fuse Rating 5A
Supply Voltage 10.5 - 31.2 VDC (12/24V systems)
Humidity 95% RH at 35°C (95°F)
Environment
Operating Temperature Range -25° to + 55°C (-13° to +130°F)
Waterproof rating IPX6
MFD
Dimensions (Diameter x H) 510mm (20")
Physical
Dimensions (W x H x D) 510mm dia x 223 mm H. (20" dia x 8.8" H)
Weight 5.9 kg (13 lbs) without cable
Radar
Beam width 4.9° H x 25° V
Max Range, scale 24 NM
Max Operating Wind Speed 100 knots (51 m/s)
Min Range, scale 50 m / 200 ft / 50 yd
Radar Modes Harbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion
Radar Technology Pulse Compression
Rotation speed 24 RPM
Other
Warranty Period 2 Years
Interface Lowrance MFD
